    llama.cpp UI Metrics (Chrome Extension)

    Manifest V3 extension that captures llama.cpp-style streaming metrics from browser UIs that call POST /v1/chat/completions over SSE. Docs: https://mwiater.github.io/llamacpp-ui-metrics-extension/

    • Hooks window.fetch() in page context (no DOM scraping for model output)
    • Watches streamed text/event-stream responses and parses data: chunks
    • Captures one record per completed response into IndexedDB
    • Exports current session records as JSONL
    • Exports the in-page dashboard as a stitched PNG (full scroll capture)
    • Supports Allowed domains management in popup
    • Shows Export Permissions status in popup and can request active-site access for PNG export
    • Supports Debug logging toggle in popup
    • Renders an in-page metrics dashboard (Metrics tab injected on allowlisted hosts)

    Per-record fields are best effort and include:

    • Request metadata:
      • model, generation params, body bytes, message counts/sizes
      • image signals (req.has_images, req.images_bytes, per-part image info)
      • document/file attach signals (PDF/text detection + recent file names)
    • Response metadata:
      • completion id/model/fingerprint
      • timings and token counters from streamed chunks
      • finish reason
    • Derived split metrics:
      • reasoning vs content split when delta.reasoning_content appears before completion

    Notes:

    • Extension tracks choices[0] only.
    • If delta.reasoning_content is absent, reasoning split fields are null/zero as expected.

    A record is emitted when the stream reaches completion with usable timing data:

    • Primary path: chunk with choices[0].finish_reason and timings
    • Fallback path: [DONE] marker + last timed chunk

    If no timed completion chunk is found, no record is emitted.

    • Single active session at a time
    • Export JSONL exports active session only
    • Export PNG captures the current dashboard view (including current filters/theme)
    • Clear all removes all stored records and resets active session

    Export filename format:

    • llamacpp-metrics_<sessionId>.jsonl

    Dashboard (in-page)

    On allowlisted hosts, a Metrics button is injected into the page.

    • Open overlay for a full-width infographic dashboard, rankings, comparisons, scatter plots, and per-model analysis
    • Input-mode and model filters apply across all dashboard sections
    • Refresh, theme toggle, JSONL export, and PNG export are built in
    • Overlay can be minimized and closed with Esc

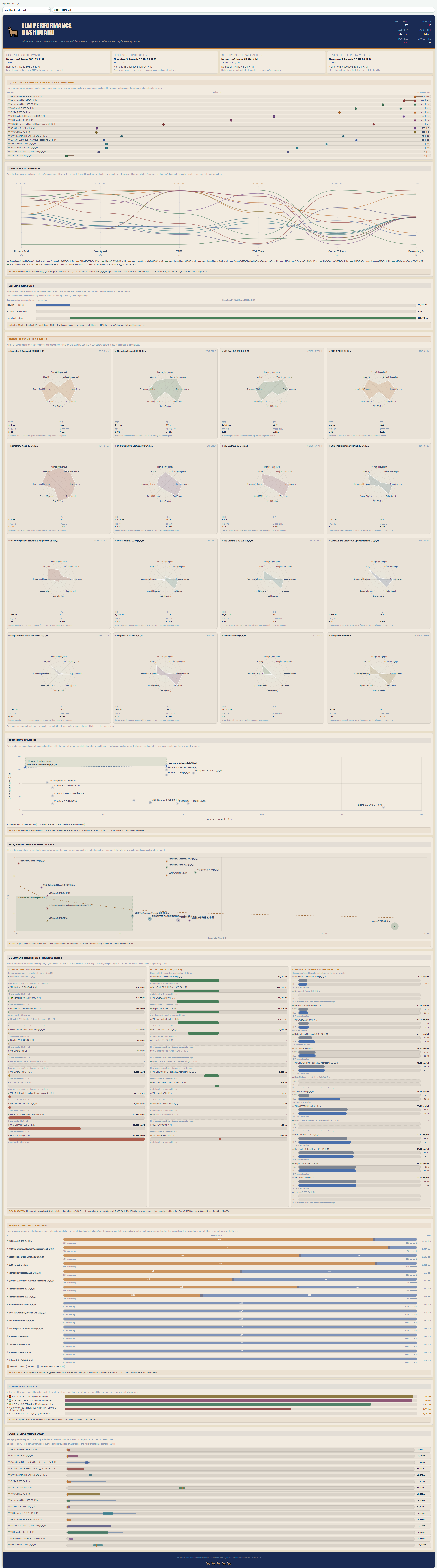

    Light theme example:

    llama.cpp dashboard (light)

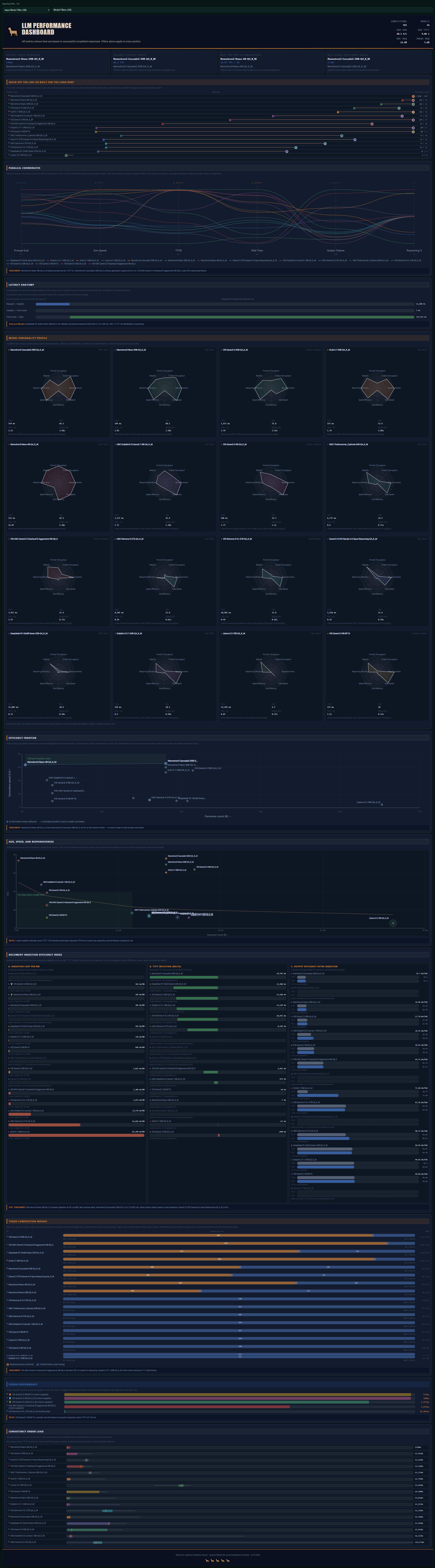

    Dark theme example:

    llama.cpp dashboard (dark)

    The dashboard header includes the following controls:

    • Dark (theme toggle): switches between light and dark dashboard themes (when dark mode is active, the button label changes to Light)
    • Export JSONL: exports the current active session records as JSONL
    • Export PNG: captures the current dashboard view as a stitched PNG image
    • Refresh: reloads dashboard stats from the extension's stored session data
    • Minimize: collapses/hides the overlay without closing the injected dashboard entry point

    The popup includes:

    • Session stats (start time, record count, storage size)
    • Allowed domain management (example.com, *.example.com, etc.)
    • Export Permissions panel for PNG export:
      • Checks active-site access status
      • Grant access to this site button (when requestable)
      • Fallback guidance to set Chrome extension Site Access to On all sites
    • Debug logging toggle
    • Import JSONL / Clear all actions

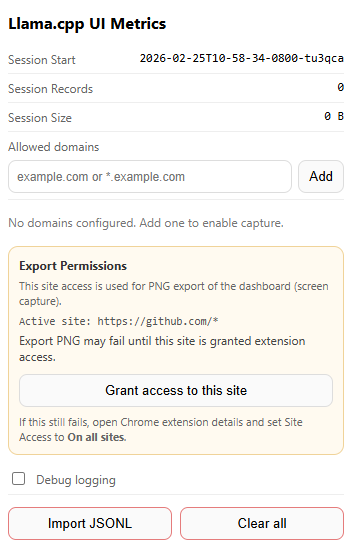

    popup settings and session view

    • Session start: the active session ID (timestamp-based) used for new captures and exports
    • Records: count of captured completion records in the active session
    • Storage size: estimated local storage size of the active session data
    • Allowed domains: host allowlist controlling where capture/dashboard injection is enabled
    • Domain input field: enter a host pattern such as example.com, localhost:8080, or *.example.com
    • Add button: adds the typed domain pattern to the allowlist
    • Domain list: shows all configured allowed-domain patterns
    • Remove (per row): removes that domain pattern from the allowlist
    • Export Permissions panel: status area for current-tab site access required by dashboard PNG export
    • Active site line: shows the current tab origin permission pattern (for example https://example.com/*) when available
    • Permission status/details text: explains whether access is available, missing, or not requestable (for example on chrome:// pages)
    • Grant access to this site: requests optional host permission for the active tab's origin
    • Debug logging toggle: enables verbose logs/probes across background/content/injected layers
    • Import JSONL: imports records from a JSONL file and overwrites current stored data (after confirmation)
    • Clear all: deletes all stored records and resets the active session (after confirmation)
    • Status message area: shows action feedback and errors (domain added, import status, permission result, etc.)

    Configure in popup (Allowed domains):

    • example.com
    • localhost:8080
    • *.example.com

    Capture starts only when current page host matches one of these patterns. Refresh open tabs after allowlist changes.

    Load the extension in Chrome (Load unpacked + Developer mode)

    1. Open Chrome and go to chrome://extensions
    2. Turn on Developer mode (top-right)
    3. Click Load unpacked
    4. Select this project folder (the folder containing manifest.json)
    5. Confirm the extension appears in the Chrome extensions list
    1. Open your target llama.cpp WebUI (or another compatible UI that streams from POST /v1/chat/completions)
    2. Click the extension icon to open the popup
    3. Add the site host to Allowed domains (for example localhost:8080)
    4. Refresh the target tab so the page hook and dashboard UI can be injected
    5. Run one or more completions in the UI
    6. Open the injected Metrics button/tab on the page to view the dashboard
    7. Use popup or dashboard export buttons (Export JSONL, Export PNG) as needed

    If PNG export fails with a capture permission error:

    1. Open the extension popup
    2. Check Export Permissions
    3. Grant access to the current site (if prompted)
    4. Reload the page and reopen the dashboard

    Alternative: set the extension's Chrome Site Access to On all sites in Chrome's extension details.

    A lightweight Node test suite covers high-value pure helper functions across the extension scripts (no Chrome runtime or Playwright setup required).

    • Run directly: node --test "tests/*.test.cjs"
    • Run via package script: npm test

    Current suite includes helper coverage for background.js (chain heuristics, dashboard aggregation, scenario comparisons), plus pure helper logic in content.js, injected.js, and popup.js.

    This repo now includes typedoc, typescript, and @types/chrome as dev dependencies, plus a tsconfig.json configured for JavaScript + JSDoc (allowJs) and Chrome extension typings.

    Install dependencies first:

    • npm install --save-dev typedoc typescript @types/chrome
    • or, if dependencies are already in package.json: npm install

    TypeDoc command for this project (current layout):

    • npm run docs:typedoc:current
    • or npx typedoc --entryPoints background.js --entryPoints content.js --entryPoints injected.js --entryPoints popup.js --excludeInternal

    What the command does:

    • npx typedoc: runs the local TypeDoc binary from your project dependencies (with TypeScript compiler support from typescript)
    • --entryPoints ...: explicitly documents the extension's top-level JavaScript files as entry points
    • --excludeInternal: hides symbols marked with @internal (used for implementation-only helpers/state)

    TypeDoc writes HTML output to ./docs by default (unless you pass --out).

    Chrome extension API JSDoc references resolve better when @types/chrome is installed and tsconfig.json includes "types": ["chrome"].

    Note: file headers use TypeDoc-friendly @module comments (instead of JSDoc @file / @description) to avoid unknown-tag warnings.

    Many helper functions and module-scoped state values are intentionally marked @internal so published docs stay focused on the most useful symbols.

    Core extension files:

    • manifest.json
    • background.js
    • content.js
    • injected.js
    • popup.html
    • popup.js
    • popup.css

    Documentation and assets:

    • README.md
    • .screens/ (README screenshots)
    • docs/ (generated TypeDoc HTML output, if created)

    Development files:

    • package.json
    • package-lock.json
    • tsconfig.json
    • tests/function-loader.cjs
    • tests/helpers.test.cjs
    • tests/background-aggregation.test.cjs

    Data is stored locally in browser IndexedDB and exported only when user clicks export.

    By default, full prompt/output text is not intentionally persisted as primary payload; captured data focuses on metrics, request shape, and timing/token fields.

    • Handles choices[0] only
    • Designed for SSE (content-type includes text/event-stream)
    • Request body parsing works best when fetch(..., { body: JSON.stringify(...) })
    • PNG export depends on Chrome tab capture permissions/site access and may require granting access + page reload
